Alveo HP™
Balloon Dilatation Catherer
Smallest Balloon Diameter | Smallest Crossing Profile | High Pressure Dilatation

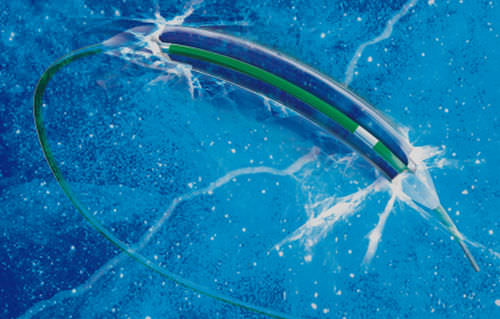

Alveo HP™
With 0.75 mm in diameter, Alveo HP is the smallest high pressure CTO balloon catheter in the world Specifically designed for crossing complex lesions and Chronic Total Occlusions (CTO) as well as tracking tortuous anatomy.
Play Video
Product Features:
- Ultra-low Tip Profile
- Optimized Distal Shaft
- Unique CTO Hypotupe Design
- Extremely High Rated Burst Pressure
| Ballon Specifications | |
|---|---|
| Ballon Diameter (mm) | 0.75,1.0,1.25,1.5,1.75,2.0 |
| Ballon Length (mm) | 5,8,10,12,15,20,25,30 |
| Nominal Pressure | 10 atm |
| Rated Pressure | 20atm |
| Average Burst Pressure | ≥ 28atm |
| Compliance | Semi-compliance |
| Ballon Pleats | Bi-fold (2 pleats) fr Ø 0.75-1.0mm and Tri-fold (3 pleats) for Ø 1.25-2.0mm |
| Tips Length (mm) | 1.5mm for Ø 0.75-1.0mm and 2.0mm for Ø 2.0mm |
| Distal Shaft OD | 2.36F/2.55F/2.7F |
| Proximal Shaft OD | 1.9F(Ø 0.75-1.5mm)/2.0F(Ø 1.75-2.0mm) |
| Guiding Catherer Compatibility | 5F Compatible |
| Guide Wire Compatibility | 0.014 inch |
| Working Length (cm) | 140 |
| Coating | SliderTM Hydrophilic external surface coating from tip to adjacent guide wire port; EelTM Hydrophobic Coating inside guide wire lumen |
| Ordering Information | ||||||||
|---|---|---|---|---|---|---|---|---|
| Balloon Length/Product Code | ||||||||
| Balloon Diameter | 5mm | 8mm | 10mm | 12mm | 15mm | 20mm | 25mm | 30mm |
| Ø 0.75mm | 813-0705 | 813-0708 | 813-0710 | 813-0712 | 813-0715 | 813-0720 | 813-0725 | 813-0730 |
| Ø 1.0mm | 813-1005 | 813-1008 | 813-1010 | 813-1012 | 813-1015 | 813-1020 | 813-1025 | 813-1030 |
| Ø 1.25mm | 813-1205 | 813-1208 | 813-1210 | 813-1212 | 813-1215 | 813-1220 | 813-1225 | 813-1230 |
| Ø 1.5mm | 813-1505 | 813-1508 | 813-1510 | 813-1512 | 813-1515 | 813-1520 | 813-1525 | 813-1530 |
| Ø 1.75mm | 813-1705 | 813-1708 | 813-1710 | 813-1712 | 813-1715 | 813-1720 | 813-1725 | 813-1730 |
| Ø2.0mm | 813-2005 | 813-2008 | 813-2010 | 813-2012 | 813-2015 | 813-2020 | 813-2025 | 813-2030 |
