RatioPlant® Single
Features

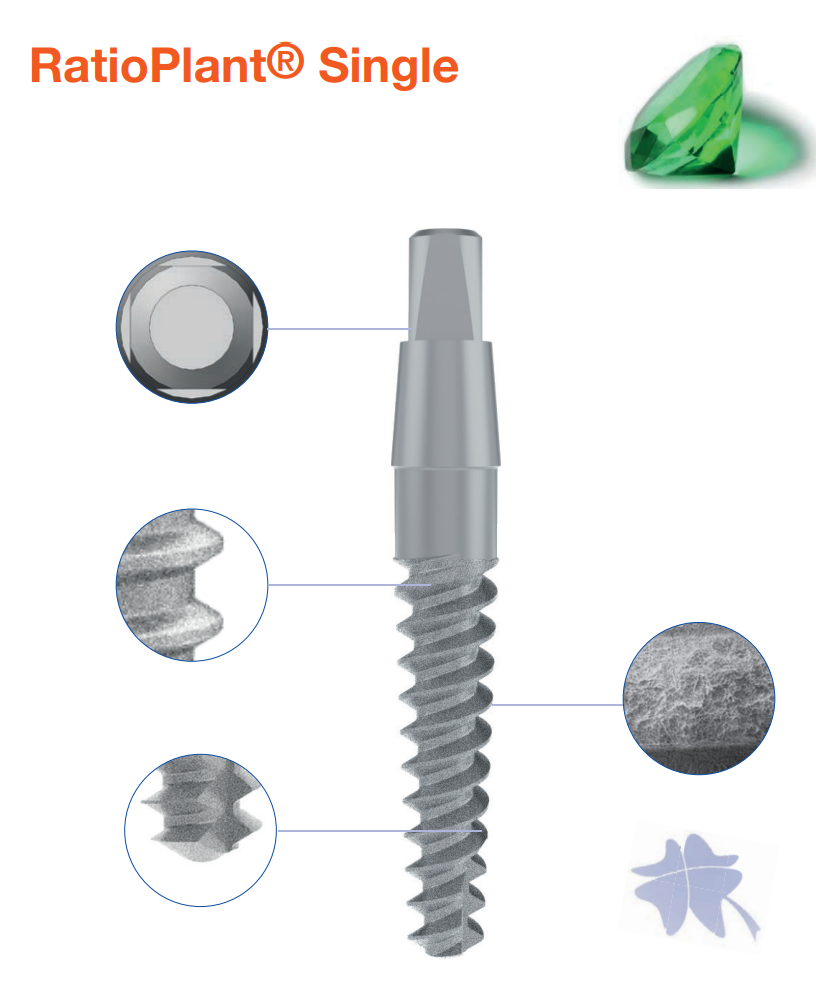

- The implants of the RatioPlant® Single line are one-piece screw implants with sandblasted and etched surface for all indications.
- The implants have a fi xed and conical connection with a square connection for insertion and anti-twist safeguard to embed single crowns, telescopical secondary parts or other prosthetic components.
- Made of Ti6Al4V - ISO 5832-3.
- The Single linie features over a atraumatic cutting thread with three cutting slots to the bone chip admission and rotation protection as well.
- For an ideal indication with consideration of stability the RatioPlant® Single implants are available with two diff erent diameters and four lengths.
Advantages
- Simple application with only one tool and three drills for all Single implants.
- Anatomical root analogous design for outstanding results at diffi cult space conditions (mandibula front area).
- Outstanding a healing with optimum apposition of the osteoblasts to the special nano-surface.
- No static connectivity problems between implant and abutment under load by design in one piece.
- Direct loading after insertion possible.
Surigcal Drills
For the Single-implant off ers HumanTech Germany GmbH a small set with
only three drills to realize a safe, simple and quick implantation procedure.

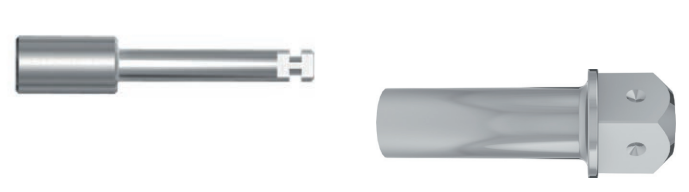

Tools
To insert the RatioPlant®Single-implants only one type tool is necessary,
that is available in two lengths, one for motor handpiece and one ratchet.
Surgical steps – example
using the example of RatioPlant® Single 3.5 / 13.0
- 1. Exposure of the bone using Scalpel or Gingiva cutter
- 2. Punch-marking - define implant position
- 3. Pilot drilling
- 4. Extension drilling to necessary diameter and final drilling
- 5. Depth measurment (optional)
- 6. Countersink

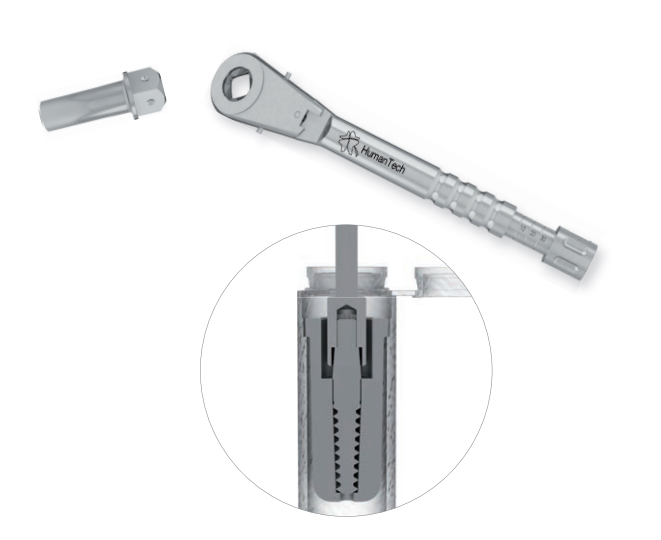

- 7. Setting of the Implantat using adapter for motor, subsequently tighten using torque ratchet and adapter for ratchet with max. 40 Ncm

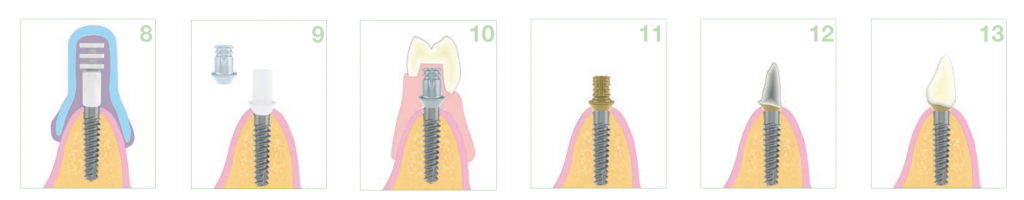

Prosthetic Care
- 8. Place transfer cap, proceed impression (closed impression)
- 9. Quick-abutment Plastic or Titanium Single for removable dentures
- 10. Application for hybrid prosthesis
- 11. Quick-abutment Gold Single hex for crowns and bridges
- 12. Customized abutment design
- 13. Crown design with porcelain
Advice
The following descriptions are not suffi cient for the immediate application of
the RatioPlant® Implant System. We recommend the briefi ng into the handling
of the RatioPlant® Implant System by an experienced surgeon. Fundamentally
the RatioPlant® Implant System only should be used by trained dentists,
implantologists and dental technicians.
Methodological errors can lead to the loss and damage to the peri-implant
bone. Processing and application of the products are beyond our control and
are under the responsibility of each user. Any liability for damage which caused
in this case is excluded.
